CONDENSOR FAN MOTOR

CondenserFanMotors-Page 3
(Outside unit fan motors)Genuine Replacement Motors: Your motor not listed? We most likely carry it. Call 1-702-990-0683.; When calling please have all the information off your old motor.; Motorsarelistedinalphabeticalorder.
Motorsarelistedinalphabeticalorder.

RecommendedAdditions

Note:Capacitorreplacementisrecommendedwith

newmotor.Whenorderingspecify,addcapacitor $19.99.

Motorspecificationscanbefoundonyouroldmotor.

Rheem--Ruud

Rheem air conditioning parts, condenser fan motors. - HOW TO ORDER - Use the part number shown in the image by entering into the add to cart box below and receive $2 off and free shipping. Order 4 items and receive $10 off!

Rheem--Ruud

Rheem--Ruud air conditioning parts, condenser fan motors. - HOW TO ORDER - Use the part number shown in the image by entering into the add to cart box below and receive $2 off and free shipping. Order 4 items and receive $10 off!

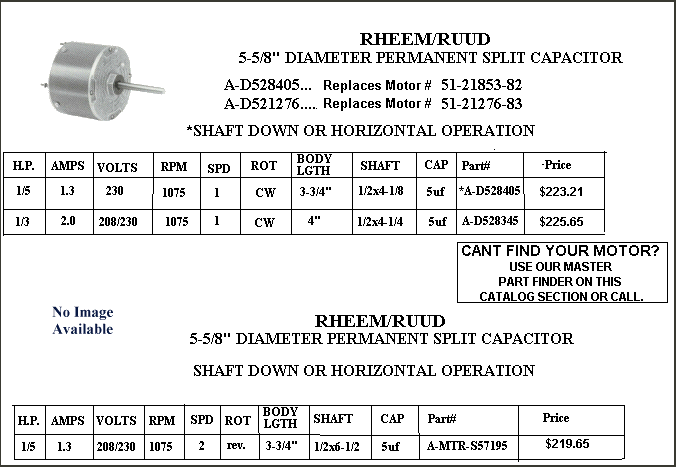

Rheem--Ruud

H/P 1/5 to 1/8. Volts 208-230. RPM 1075. Amps 1.1 . Shaft 1/2" .
Shaft Length 5-1/2" . Body Length 3-11/16"
48 Frame Condenser Fan Motor Single Shaft, Replacement for Rheem and Night and Day Condenser Units -
1/8 or 1/5 HP, 208-230 Volt, 1075 RPM Applications: � This replacement motor can be used in many applications � Replaces Rheem-Ruud #2234779, #20682-01, 20673-01, G-02, 20675-01,
Emerson #K55HXMBZ06560,
K136, Franklin #8735660130 and Magnetek #442
Features of this motor:
� Four colored leads with quick connect terminals, comes with green ground lead
� Rotation: Reversible, shaft has water slinger, lead end enclosed
� Stud mount, sleeve bearing, 230V, 48 frame.
� Automatic thermal protection, capacitor not included.
Part # 56675642MOT9 $210.32

Rheem-Ruud

Trane

General Electric air conditioning parts, condenser fan motors. - HOW TO ORDER - Use the part number shown in the image by entering into the add to cart box below and receive $2 off and free shipping. Order 4 items and receive $10 off!

York

York air conditioning parts, condenser fan motors. - HOW TO ORDER - Use the part number shown in the image by entering into the add to cart box below and receive $2 off and free shipping. Order 4 items and receive $10 off!
